CHARACTERISTICS OF THE MODULAR ELECTRICAL BOX
- ARMOUR
Corrugated B 500 SD/ UNE 36065 EX-00
Steel S275 JR / UNE EN 10025.
Hot-dip galvanised according to UNE- EN ISO 1461
- CONCRETE
Hormigón de alta resistencia cumpliendo con las condiciones establecidas por la reglamentación vigente, Código Estructural.
Resistance: 400 Kp/cm².
DESCRIPTION OF MODULAR ELECTRICAL BOXES
Modular prefabricated electrical box, with a 600 mm pitch, modulated in four different parts.
It is made up of two fundamental parts, the base chamber and the reduction cone. It also has supplementary rings.
The windows are designed for a maximum of 3 x 160 mm tubes or 5 x 110 mm tubes per wall.
MODELS OF MODULAR ELECTRICAL BOXES
| DESCRIPTION | LIGHT | WALL | HEIGHT | WEIGHT kg. |
|---|---|---|---|---|

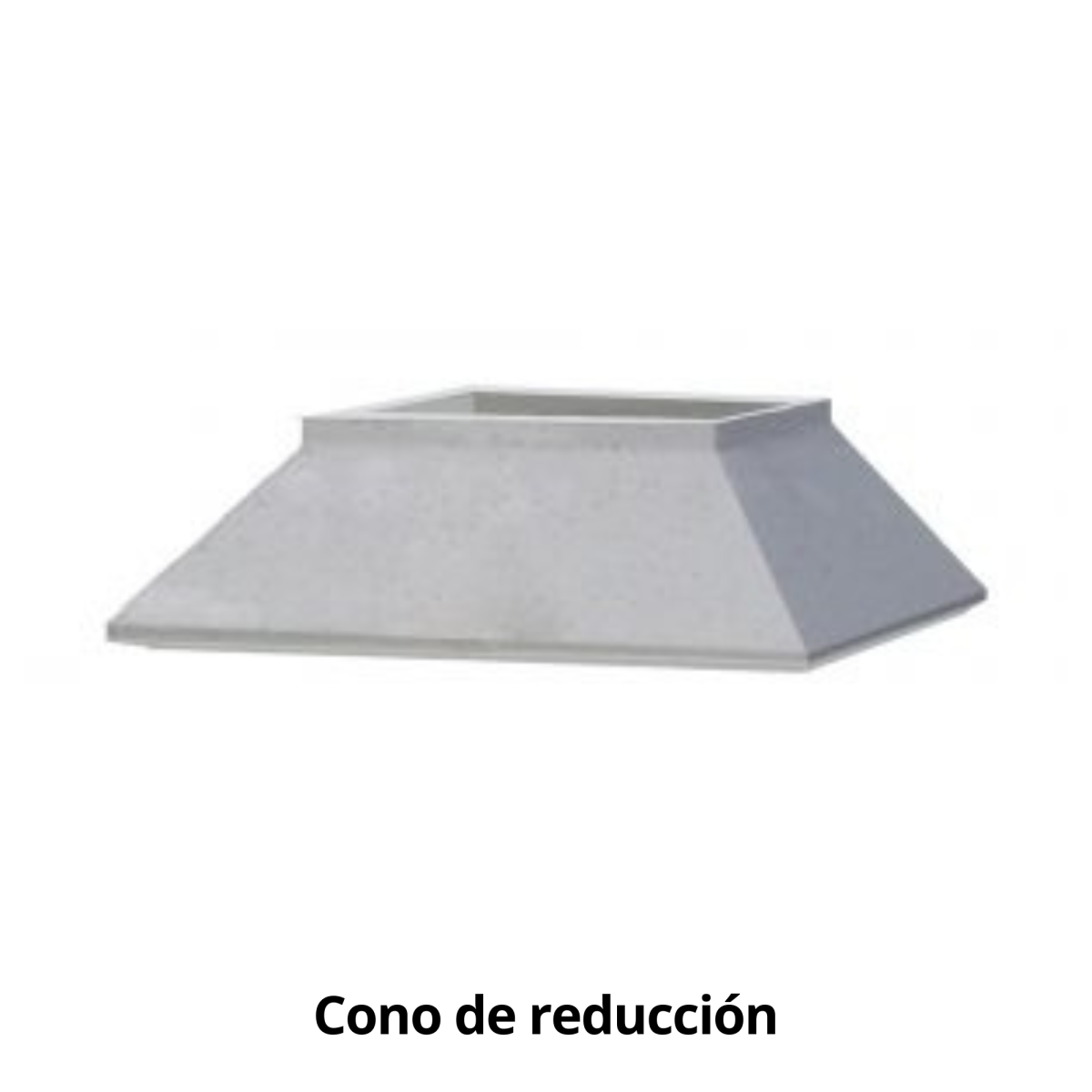

| CONE | 1000 a 600×600 | 80 | 350 | 245 |

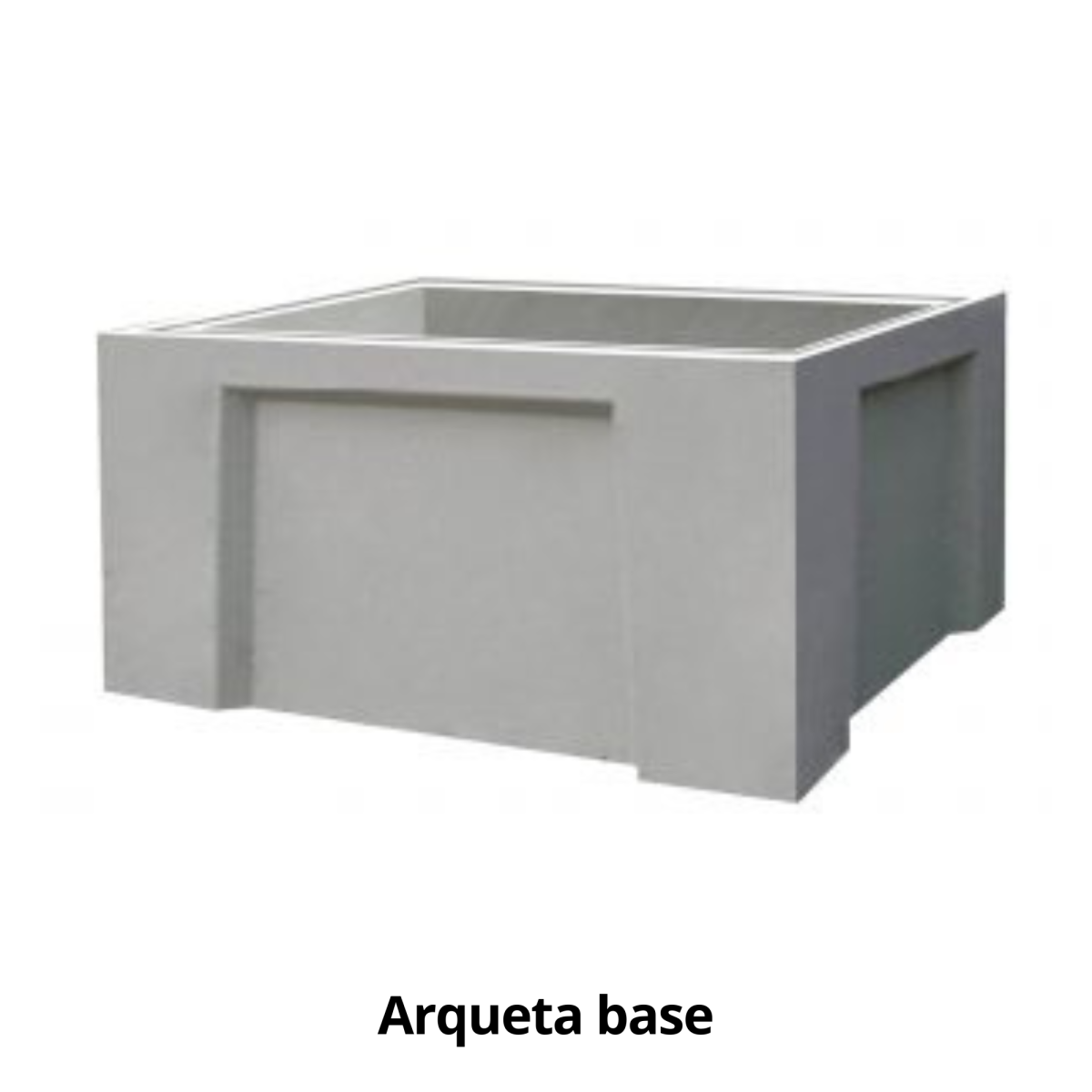

| BASE | 1000×1000 | 80 | 600 | 340 |

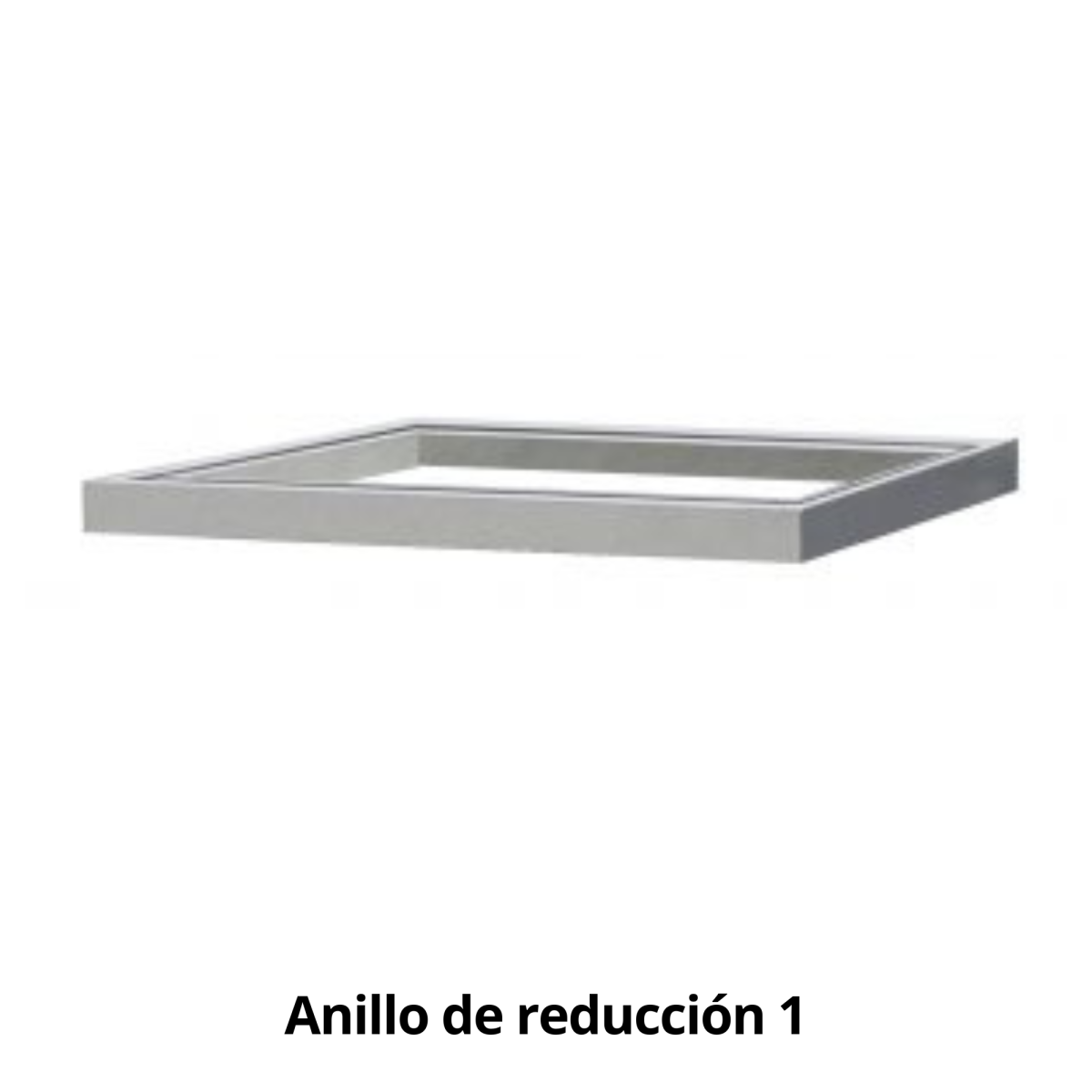

| SUPPLEMENT TYPE 1 | 1000×1000 | 80 | 100 | 88 |

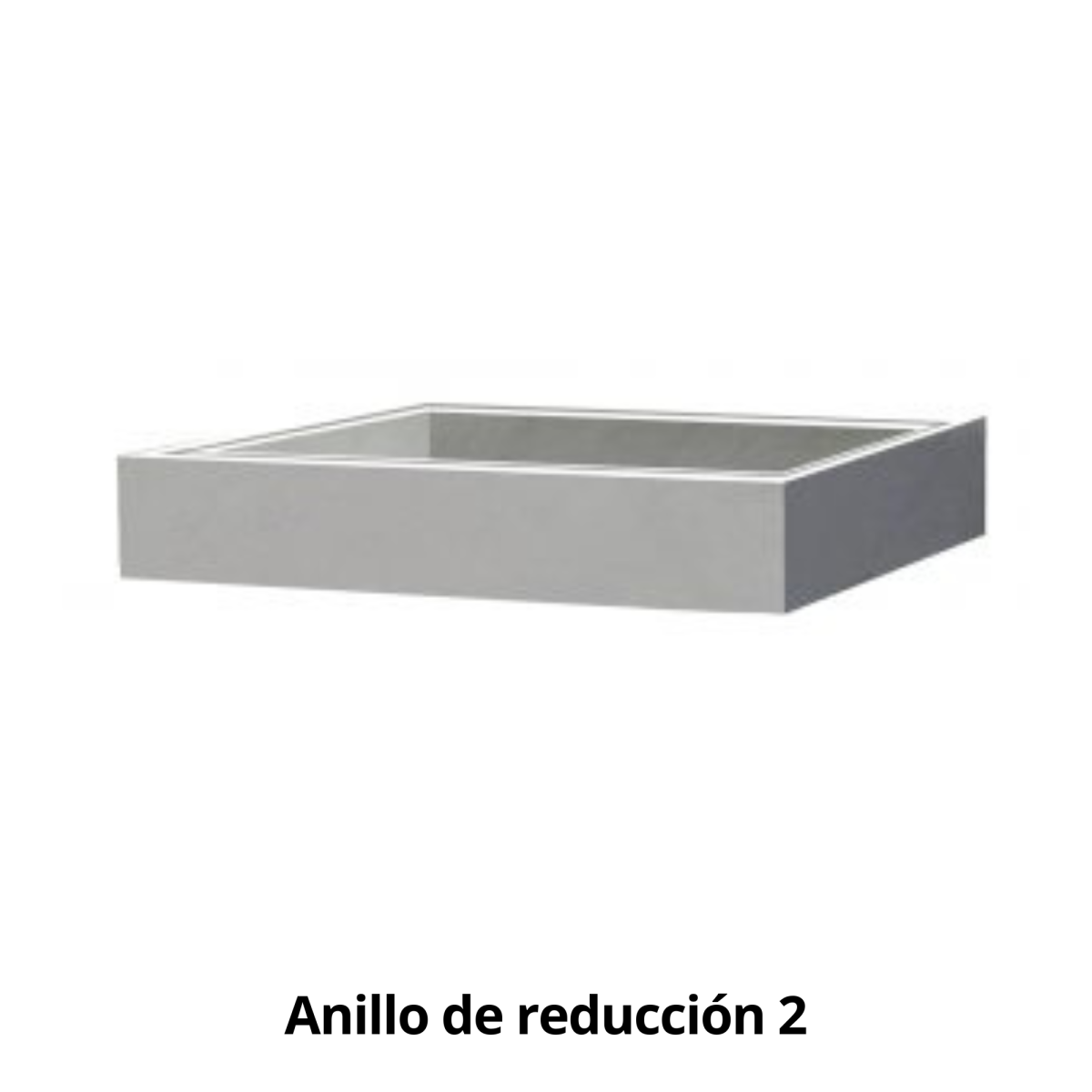

| SUPPLEMENT TYPE 2 | 1000×1000 | 80 | 200 | 176 |
